ERP server lenovoserver (computer) Lenovo SR868 Lenovo High-End Server Database Server

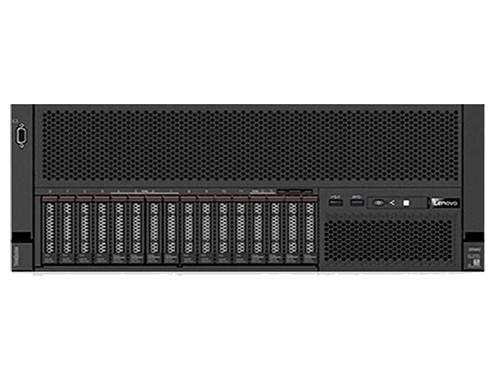

Lenovo Server ThinkSystem SR868
| Basic information | |
| Product Model | ThinkSystem SR868 |
| Product Type | rackmount |
| product mix | 4U |
| processing unit | |
| CPU Series | Intel Xeon Gold |
| CPU core | Core 16 |
| Number of CPU threads | thirty-two threads |
| CPU Model | Intel Xeon Gold 5218 |
| CPU frequency | 2.3GHz |
| three-level cache | 22M |
| Number of standard CPUs | 4 |
| Maximum number of CPUs | 8 |
| motherboard (computer) (lit. lord board) | |
| Motherboard chipset | Intel C620 Series |
| random access memory (RAM) | |
| Memory Type | 24 memory slots for 2 CPUs, expandable to 3T, 48 memory slots for 4 CPUs, expandable to 6T |
| Standard Memory | 1TB |
| Number of memory slots | 24 |
| stockpile | |
| Hard disk interface type | SATA/SAS |
| Standard Hard Disk | 3TB |
| hard disk array | Raid 0,Raid 1,Raid 5 |
| Hard Disk Hot Swap | be in favor of |
| other than | |
| power supply | 2 |
| maximum power | 1100W |
| sizes | 72×482×782mm |
| Other Performance | display cardR730 8i, 12Gb SAS/SATA with 1GB Cache |
| NIC: Selectable 1GbE, 10GbE, 25GbE, 32GbE, 40GbE or | |
| InfiniBand PCIe adapter; 1 (2/4-port) 1GbE or 10GbE LOM card | |
| Expansion: Supports 13 PCIe slots, including an optional LOM slot and a slot reserved for M.2 devices | |
| Microsoft Windows Server, Red Hat, SUSE, VMware vSphere, etc., can be pre-installed. |
