Buy the performance and flexibility you need

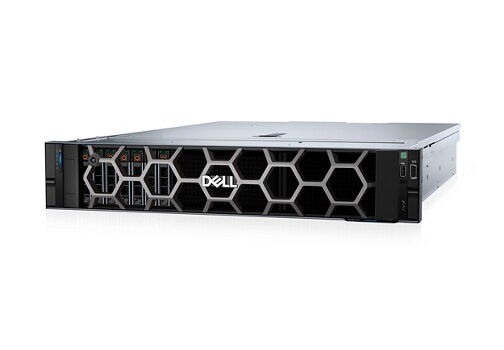

The new Dell PowerEdge R760xs is a 2U DualRackmount servers. Buy this purpose-built 2U system and get the right mix of scalable performance and bigstockpileCapacity. Focused on delivering new technologies to support common applications and workloads used in today's organizations, including virtual desktop infrastructures (VDI), virtual machines (VMs), and software-defined storage (SDS). All of this is delivered in a well-designed platform that will provide balanced computing that fits your current infrastructure.

Easy to Configure

Add up to two 5th Generation Intel^® most powerful^® Scalable processors (up to 28 cores) and 4th Gen Intel^® most powerful^® Scalable processors (up to 32 cores per socket) for increased performance
Accelerated in-memory workloads with up to 16 DDR5 RDIMMs at speeds up to 5200 MT/sec
With support for up to 8 I/O devices (up to 6 PCIe slots, 1 OCP 3.0), it is possible to create an I/O device that can be used for a variety of purposes. reticulation(and 1 dedicated PERC slot) to increase data throughput and reduce latency
Storage options include up to 12 3.5-inch HDDs/SSDs or up to 16 2.5-inch HDDs/SSDs, and up to 8 NVMe drives

Easy cooling

Designed to fit your current air-cooled infrastructure
Elimination of restrictions ondata centerConcerns about performing expensive liquid cooling retrofits
Synchronize workload requirements with customized performance configurations (air-cooled configurations)
Greater reduction of data center carbon footprint by better matching system power consumption to expected workload requirements

Network resiliency architecture for zero-trust IT environments and operations

suretyIntegrity is integrated into every stage of the PowerEdge lifecycle, including a protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust builds in end-to-end boot resiliency, while multi-factor authentication (MFA) and role-based access controls ensure trusted operations.

Improve efficiency and accelerate operations through autonomous collaboration

The Dell OpenManage™ systems management portfolio provides a secure, efficient and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Sustainable development

From recycled materials in our products and packaging, to thoughtful and innovative options for energy efficiency, the PowerEdge portfolio is designed to manufacture, deliver and recycle products to help reduce our carbon footprint and lower operating costs. We even make it easy to responsibly retire legacy systems with Dell Technologies Services.

Peace of Mind with Dell Technologies Services

Available in 170 countries(sales) inquiry (formal),ProDeploy cap (a poem) ProSupport suiteData migration changeGet the most out of your PowerEdge servers with comprehensive services, supported by our more than 60,000 employees and partners.

functional component	technical specification
processing unit	Up to two 5th generation Intel Xeon Scalable processors (up to 28 cores) and 4th generation Intel Xeon Scalable processors (up to 32 cores per processor)
random access memory (RAM)	16 DDR5 DIMM slots, supports up to 1.5 TB RDIMMs at speeds up to 5200 MT/s, supports only register ECC DDR5 DIMMs
Storage Controller	Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs, or USB External HBA (not RAID) HBA355e; Software RAID: S160
GPUs options (as in computer software settings)	2 x 75 W SW, LP
Drive Bays	Front Bays: 0 drive bays Up to 8 x 3.5-inch SAS/SATA (HDD/SSD), up to 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD), up to 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), up to 122.88 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD), up to 121.6 TB Up to 16 x 2.5-inch (SAS/SATA + 8 x 2.5-inch (NVMe)) 2.5-inch SAS/SATA (HDD/SSD), up to 121.6 TB Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD), up to 244.48 TB	Back Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) up to 30.72 TB (12 x 3.5-inch SAS/SATA HDD/SSD configurations only)
Hot-swappable redundant power supplies	1800 W Titanium 200-240 VAC or 240 VDC 1400 W Platinum 100-240 VAC or 240 VDC 1400 W Titanium 277 VAC or HVDC (HVDC stands for High Voltage DC with 336V DC) 1100 W Titanium 100-240 VAC or 240 VDC	1100 W - (48V - 60V) DC 800 W Platinum 100-240 VAC or 240 VDC 700 W Titanium 200-240 VAC or 240 VDC 600 W Platinum 100-240 VAC or 240 VDC
Cooling Options	air cooling
fan (loanword)	Standard (STD) fans/high performance silver (HPR) fans/high performance gold (VHP) fans, up to 6 hot-swappable fans
Size and weight	Height - 86.8 mm (3.41 inches) Width - 482 mm (18.97 inches)	Depth - 707.78 mm (27.85 in) - without flaps 721.62 mm (28.4 in) - with flaps Weight - 28.6 kg (63.0 lbs) max.
Form factor	2U Rackmount Server
Embedded Management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish	iDRAC Service Module Quick Sync 2 Wireless Module
baffle	Optional LCD baffle or safety baffle
OpenManage software	CloudIQ for PowerEdge Plug-in OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center	OpenManage Integration with Windows Admin Center OpenManage Power Manager Plug-in OpenManage Service Plug-in OpenManage Update Manager Plug-in
mobility	OpenManage Mobile
OpenManage Integration	BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow	Red Hat Ansible Modules Terraform Provider VMware vCenter and vRealize Operations Manager
safety	Cryptographically signed firmware Data-at-rest encryption (SED with local or external key management) Secure boot Secure erase	Security Component Validation (Hardware Integrity Check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG Certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0 card (optional)

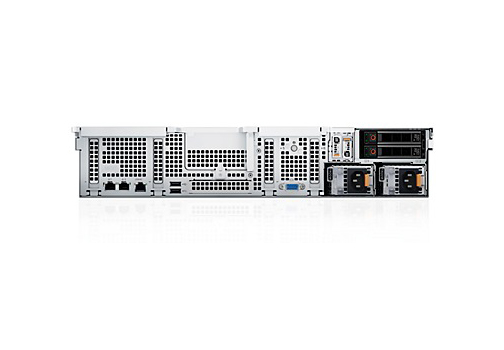

ports	Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0 port, 1 x VGA port Built-in Ports: 1 x USB 3.0 (optional)	Rear Ports 1 dedicated iDRAC Ethernet port, 1 USB 2.0 port, 1 USB 3.0 port, 1 VGA port, 1 serial port (optional)
PCIe	Single CPU configuration: up to 4 PCIe slots (2 x8 5.0, 1 x16 4.0, 1 x8 4.0) Dual CPU configuration: up to 6 PCIe slots (2 x16 5.0, 2 x16 4.0, 3 x8 4.0)
