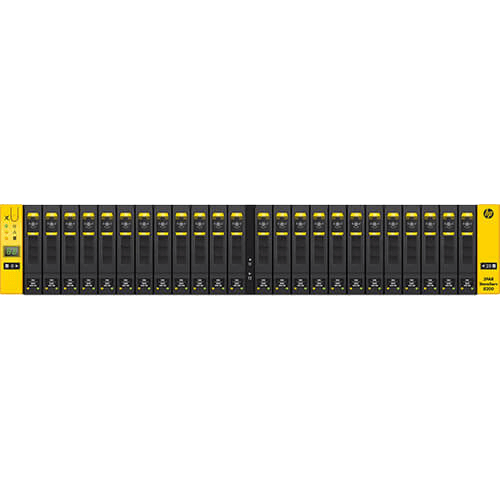

surname Yunstockpile HPE Storage HPE 3PAR StoreServ 8000 Storage High-End Storage
new feature
- All-flash performance is now available starting at just $19,000.
- With an industry-leading 5.5 PiB available capacity density per tier, it meets the needs of growing organizations.
- pass through a surveyWith HP 3PAR Gen5 The Thin Express ASIC's flash-optimized architecture delivers more than 1 million IOPS at less than 1 millisecond latency to meet unpredictable business demands.
- Complexity is eliminated by using iSCSI for Ethernet, by automating storagereticulationSpeeds up configuration.
- Use HP 3PAR Remote Copy's new asynchronous streaming to achieve asynchronous replication in cache mode rather than snapshot mode, realizing second-level RPOs and achieving enterprise-level disaster recovery and business continuity more effectively.
- Through the HP 3PAR Peer Motion in the case of no additional gateway can be realized and 3PAR high-end models of storage to form a storage to federal clusters, the data can be between 2-4 sets of storage in accordance with the performance, capacity and other policies for online data migration, transparent to the host platform.
- Automated SAN provisioning capabilities with standard protocols through the HP Smart SAN feature eliminates the need to preconfigure SAN Zones before provisioning hosts and volumes, and automatically discovers and creates SAN Zones that are managed by storage target ports.
- Through HP Peer Persistence Dual Activation technology without adding external gateways and software to realize the storage to form a highly available cluster, in the case of an array failure, host IO access can be seamlessly switched to another array without interrupting the business.
functionality
Reduce storage costs by up to 75%
- A 5-year warranty is offered on all SSDs, and all-flash storage is available for as low as $19,000 or $1.50 per GB of usable capacity.
- Data compression technology has reduced capacity requirements by as much as 75%.
- Simplify storage management and reduce footprint by 67% with unified data blocks and files.
- Industry-leading 5.5 PB density per tier.
Does not affect performance in any way
- Eliminate bottlenecks with flash-optimized, horizontally scalable architecture and over 1 million IOPS.
- Ensure service levels with QoS optimization and consistent, quasi-millisecond latency.
- Support mixed workloads and accelerate performance with Gen5 Thin Express ASICs.
- Increases flash performance by 351 TP3T and reduces latency by 2.5x with 16 Gbps Fibre Channel.
Eliminates downtime and allows integration with confidence
- Utilizes a suite of persistence technologies to maintain high availability and Tier 1 resiliency.
- Quasi-synchronous RPO is possible through flexible, transparent and model-independent remote replication.
- Simplify backup and recovery with application-aware, storage-integrated data protection.
Respond easily to unpredictable and changing needs
- Freely scalable in any direction from a minimum of 3.6 TB to 7.3 PB of usable capacity in a single system.
- Eliminate complexity by using iSCSI for Ethernet and speed provisioning with automated storage networking.
- Storage Heterogeneity via 3PARvirtualizationFunctions to realize heterogeneous takeover of third-party storage arrays of different vendors, support mainstream storage vendor products, and realize data migration, etc.
- Optimized through seamless data movement between arraysdata centerlevel of storage.
dominance
- Converged Storage Architecture: SAN, NAS and Object Storage functions can be implemented on a single storage at the same time, synchronous and heterogeneous data replication can be achieved between different models of 3PAR, and storage federation can be formed between different models of 3PAR.
- Dedicated Storage ASIC Chips: Each controller is configured with one or two leading 5th generation storage dedicated ASIC chips to achieve thin provisioning, zero detection, deletion and RAID operations in a hardware-accelerated manner, which can reclaim unnecessary space occupation, improve storage resource utilization, and easily cope with virtualized environment andcloud computingMixed IO loads in the
- True multi-control system: multi-controller architecture, high-bandwidth, low-latency PCI-E bus point-to-point full mesh direct interconnection between multiple controllers, multiple controllers can concurrently access the same LUN space to ensure that the performance of the controller data with the growth of the linear growth; and in the case of multi-controller, in the event of a controller failure to maintain high-performance operation of the storage, support for more than 32TB cache, optimizing IO performance and reducing access latency.
- Storage internal bottom layer virtualization technology: play the performance of each disk, to ensure the high IO performance of the storage system, there will be no hotspot hard disk, no need to configure a dedicated hot spare disk, the use of global hot spare space technology, in the event of a hard disk failure to be able to multi-multiple high-speed rebuild, the same hard disk can be present at the same time on the RAID 0/1/5/6/10/50/60 and so on, the different RAID types
- Supports granular QoS control with IOPS, bandwidth, and latency settings for each volume to ensure predictable service levels for your applications, workloads, and tenants with application latency control of less than 0.5ms.
- High Availability: Up to 99.9999% availability, provides T10-PI consistency data detection protection from the host HBA port to the storage array hard disk to ensure data integrity; at the same time with high availability of data, provides storage-based data copy protection, data can be written to the storage according to the policy to create 2-4 data copies to protect the datasuretyIn addition, the storage system supports at least one hard disk expansion cabinet without data loss and application interruption in the event of a power failure or malfunction, and provides data protection mechanisms at the expansion cabinet level.
- Enterprise-level features: powerful snapshots, cloning, thin provisioning, deletion, compression, automatic tiering, one-click RAID type conversion, storage federation, heterogeneous storage data migration, flash standby data protection solutions, and enterprise-level features such as same-asynchronous disaster recovery, 3DC disaster recovery, dual-active, dual-active + 3DC, etc.
- Synchronous or asynchronous disaster recovery can be formed between 3PAR's mid-range and high-end products for dual datacenters, and triple datacenter storage-level disaster recovery as well as co-located dual-active + triple datacenter storage-level disaster recovery. 3PAR's IP replication ports are built into each controller, and 3PAR's remote replication technology can be combined with thin provisioning and asynchronous snapshotting technology to reduce link replication costs.
