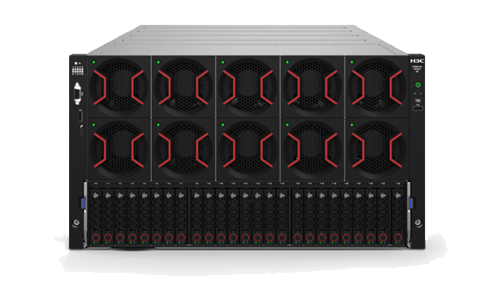

H3C UniServer R5500 G5It is equipped with a high-performance 8- GPUsModule's AI server, with 8 enterprise-grade high-performance GPUs realizing high-speed inter-chip full interconnection, provides strong computing power for AI business, comprehensively covering model training, model fine-tuning, model inference and other AI business scenarios
Hardware platforms to accelerate AI adoption
The H3C UniServer R5500 G5 adopts advanced modular design, and the five modules of the whole machine: GPU computing module, CPU computing module, hard disk module, fan module, and power supply module can be independently pluggable and maintainable, and the 6U architecture makes the R5500 G5 perfectly adapted to the 8- GPU module in terms of heat dissipation, power supply, and I/O scalability to bring out strong performance. It can be applied to various AI business scenarios such as AIGC, speech recognition, image classification, and machine translation.
H3C UniServer R5500 G5 supports the new multi-instance GPU feature, which allows a single GPU to be split into up to seven GPU instances, each of which can run different applications, greatly improving GPU resource utilization. The R5500G5 can be deployed for a wide range of applications such as deep learning model training, deep learning model fine-tuning, deep learning model inference, high-performance computing, and data analytics, with enhanced performance and unprecedented flexibility.
The H3C UniServer R5500 G5 can support either AMD or Intel CPU compute modules, with AMD compute modules supporting up to twoAMD EPYCTM processor for 200% performance boost and 230% core count boost with 8-channel memory for up to 4TB of memory capacity.Intel Compute Module supports up to 2 Intel® Xeon® 3rd Generation Scalable Family processors with up to 40 cores on a single one and up to 270W of maximum power, with up to 16 Intel® Atom® Persistent Memory PMem200 series with up to 12TB of supported memory capacity. with the support capability of 25 2.5-inch hard disks (up to 12 NVMe supported), users can get up to 200TB ofstockpileSpace. 200GEreticulationThe addition of the R5500 G5 allows users to deploy high-performance AI arithmetic clusters with the R5500 G5, accelerating the landing and application of artificial intelligence in enterprises.
Product Specification
| GPU computing module | 8-GPU Module | |
| CPU computing module | AMD Compute Nodes | Intel compute node |
| processing unit | Supports up to 2 AMD EPYC Rome/Milan/Milan- X processors up to 64 cores on a single chip with a maximum power of 280W. | Supports up to 2 Intel® Xeon® 3rd Generation Scalable Family processors or Lancel® processor family with up to 40 cores each and up to 270W of power. |
| random access memory (RAM) | Supports up to 32 DDR4 memory slots at rates up to 3200MT/s Supports RDIMM or LRDIMM | Supports up to 32 DDR4 memory slots at rates up to 3200MT/s Supports RDIMM or LRDIMM with up to 12TB of capacity Supports up to 16 Intel® Atom® Persistent Memory PMem 200 Series |
| Storage Controller | Optional high-performance RAID controller, support RAID0/1/10/5/6/50/60 | |
| PCIe slot | Supports up to 10 PCIe 4.0 standard slots + 1 dedicated slot for OCP 3.0 NICs | |
| hard disk | System SAS/SATA/NVMe hard disk configuration: 25×2.5-inch SAS/SATA/NVMe (supports 12×NVMe) 8×2.5-inch SAS/SATA/NVMe (supports 8×NVMe) | |
| reticulation | Optional OCP 3.0 NIC, optional 1/10/25/40/50/100/200GE PCIe standard NICs | |
| fan (loanword) | 10 high-performance fans with N+1 redundancy support | |
| management software | HDM Agentless Management Tool (with separate management port) and H3C UniSystem Management Software | |
| connector | 2 USB 3.0 + 1 VGA + 1 TypeC Debug port (front panel) 2 USB 3.0 (internal) 2 USB 3.0 + 1 VGA + 1 serial port + 1 HDM management network port (rear panel) | |
| power supply | Supports 4 x 3000W + 2 x 2400W/2000W Platinum Power Supplies with N+N redundancy | |
| operating temperature | 5℃~35℃ (operating temperature support is affected by different configurations, please refer to the detailed product technical document description) | |
| Form factor/chassis dimensions | 6U chassis: 263.7mm (H) x 482.6mm (W) x 847mm (D) | |
| promise to keep sth. in good repair | 3 years 5 x 9, next business day response (NBD) | |
