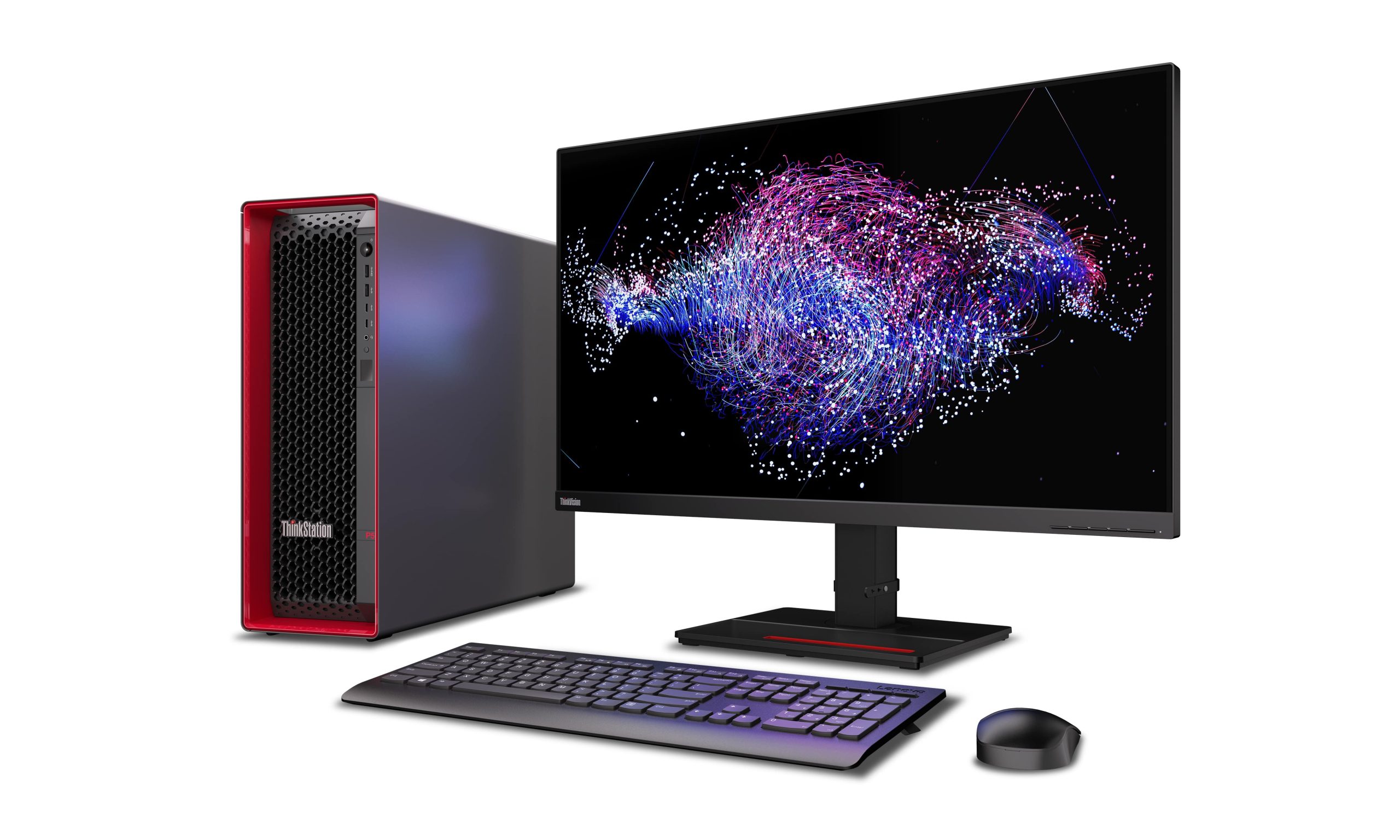

Lenovo P5(computer) workstation Lenovo Workstation Lenovo P5 ThinkStation P5 Midrange Workstation
A powerful productivity tool for the future
The ultimate in versatility, the ThinkStation P5 is an all-around high-performance product for professionals who need powerful scalability and long lifecycle solutions.Featuring a new chassis created by Lenovo in conjunction with super-luxury sports car maker Aston Martin, the ThinkStation P5 is equipped with the latest Intel® Xeon® W-Series processors and supports up to two NVIDIA RTX™ 5880 Ada top-of-the-line professional graphics cards. The ThinkStation P5 is trustworthy enough for even the most mission-critical work scenarios.

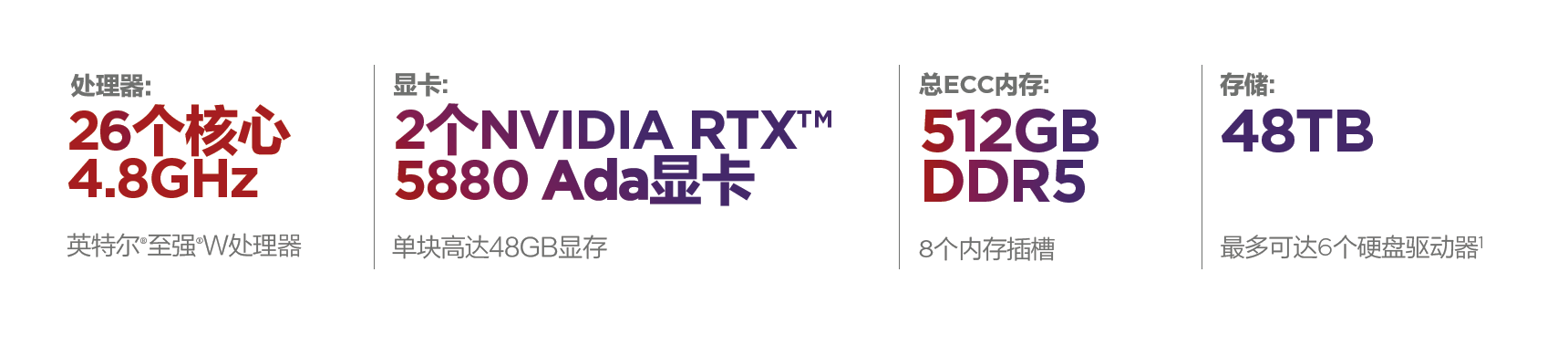

| processing unit | Intel®most powerful®W-Series processors (up to 26 cores, up to 4.8 GHz) |
| chipsets | Intel W790 |
| display card (computer) | Supports up to two NVIDIA RTX™ 5880 Ada Top Professional Graphics Card |
| Up to 48GB of video memory in a single block | |
| total memory | Up to 512GB DDR5, up to 4800MT/s |
| Memory capacity | 16GB / 32GB / 64GB RDIMM ECC |
| 8 memory slots | |
| stockpileType Capacity 3 | M.2 PCIe NVMe SSD up to 4TB 3.5-inch SATA drive up to 12TB |
| Total stockpiles | Up to 6 hard disks, max M.2 = 3 (12TB) max 3.5" = 3 (36TB) |
| disk array | m.2 = 0/1/10/5 sata = 0/1/5 |
| power supply | 750W, 1000W (92% energy efficiency) |
| devise | Dimensions (W x D x H) |
| (mm): 165 x 453 x 440 | |
| (inches): 6.5 x 17.8 x 17.3 | |
| weights | Up to 21 kg (46.3 lbs) |
| connectivity | front port |
| (1) Audio combo jack optional front port | |
| (2) USB-A 3.2 Gen 2 (10Gbps)* (2) USB-C® 3.2 Gen 2 (10Gbps) | |
| rear port | |
| (2) USB 2.0* | |
| (3) USB-A 3.2 Gen 2 (10Gbps)* | |
| (1) USB-C 3.2 Gen 2x2 (20Gbps)* | |
| (1) RJ-45 Gigabit Ethernet | |
| (1) Audio Input | |
| (1) Audio output port | |
| Optional Rear Port (1) Serial | |
| cordlessreticulation(Optional) | Intel AX211 Wi-Fi 6E 2x2 + Bluetooth™ 5.2, Intel vPro5 Internal Wi-Fi Antenna |
| expansion slot | (2) PCIe 5.0 x16 |
| (1) PCIe 4.0 x8 | |
| (3) PCIe 4.0 x4 | |
| Expansion Interface 4 PS/2 USB-C | network port |
